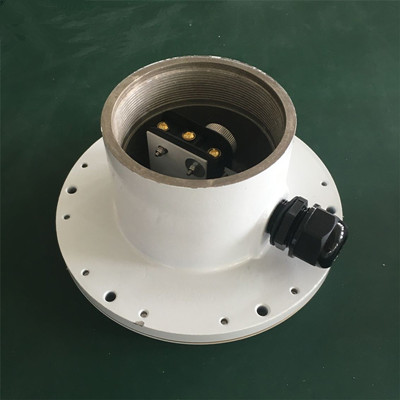

Project Description
| Type | NK-1052 |
|---|---|
| IP Code | IP65 |
| Sensitivity Adjustment | 5mm |
| Capacity of Contacts | 110V AC; 220V AC; 24V AC; 24V DC |
| Shell Material | Aluminium Alloy |
| Membrane Material | SUS304 |
| Pressure | 20-50N |
| Working Temp. | -30~150°C |
| Cable Size | M25x1.5 |
| N.W. | 2kgs |

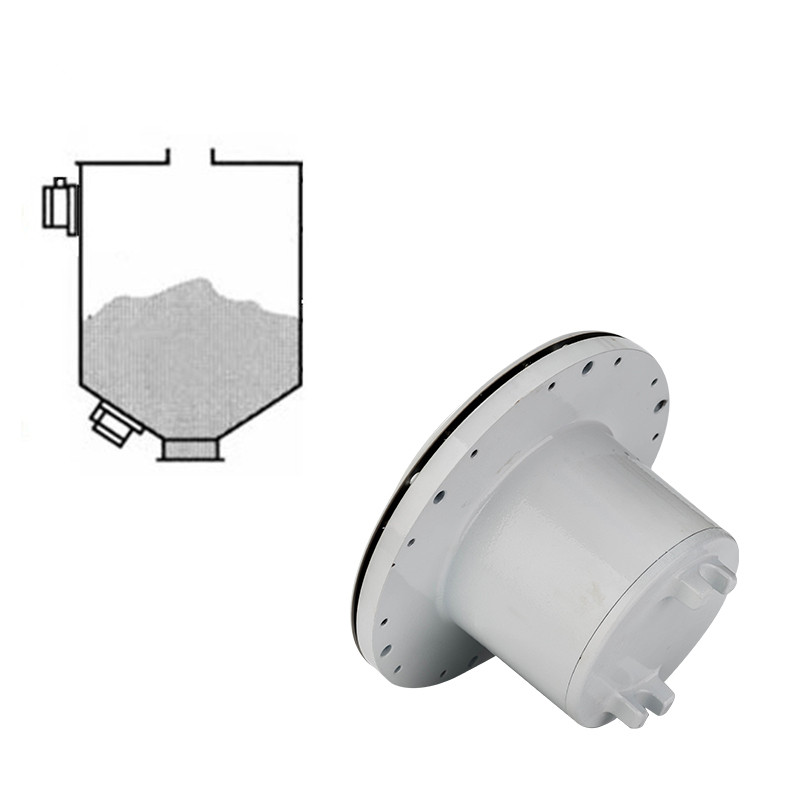

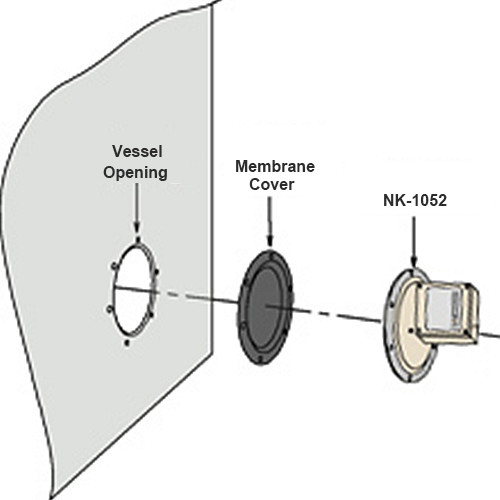

Diaphragm switch provides level indication by detecting pressure applied by the bulk material to the sensing diaphragm. The unit is installed to a vessel wall so that the diaphragm is exposed to the material to be sensed. As material contacts the diaphragm, a force is exerted through the diaphragm to a pressure plate within the bin monitor. Physical deflection of the pressure plate activates an internal switch. When material recedes from the diaphragm, a light duty spring returns the pressure plate and internal switch back to their original positions.

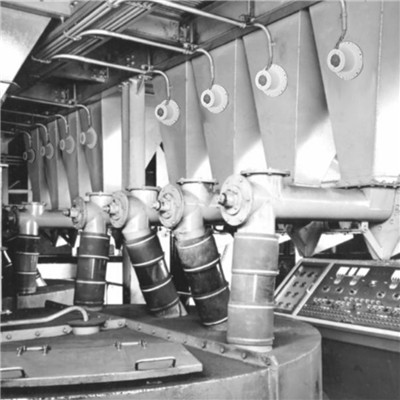

– Grain hopper/silo
– Wood pellet hopper/silo
– Grain drier
– Feed bin
Diaphragm Switch NK-1052 is a bulk material level control for use with free flowing medium and heavy bulk materials which will exert a minimum diaphragm actuating force of 20N. This unit is designed primarily for exterior side of bin mounting.
