Project Description
| Type | EC7120-801 |
|---|---|
| Power Supply | 110V/220V AC 50/60Hz |
| Power Input | 7.5W |
| Sound Volume | 105~110 dB (measured at 1m away) |
| Continues Working Time | 1 hour |
| Temp. Rising | ＜65K |
| Working Temp. | -20~60°C |
| Working Humidity | ＜95% |
| Operation Frequency | 10~25Hz, Vibration<2mm, 0.5 hour |
| Main Fabrication Material | Flame retardance AAS, Carbon Steel Q235 |
| Weight | 2.9kgs |
| IP Code | IP55 |

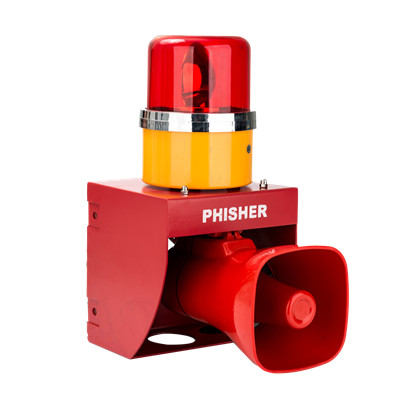

Sound and light siren can notify the people and avoid the dangers, it can be used in noisy circumstances, manufactory workshop, ports, quarry etc., as well as fire or other disaster warning.

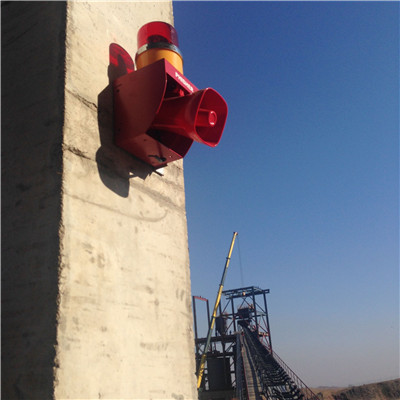

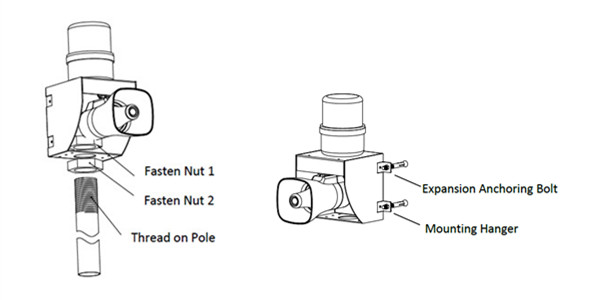

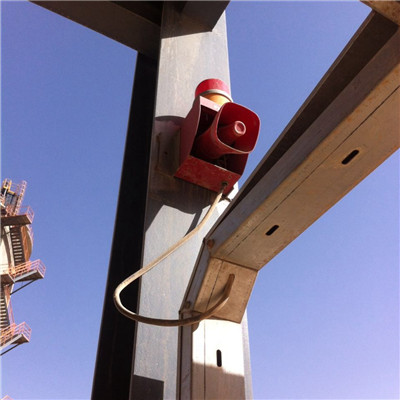

There are 2 mounting options: pillar mounting or wall mounting. In Case of pillar mounting, there is Ø50mm punched shape of hole on the bottom, break the hole and insert the pillar. Fasten the pillar by tightening nuts. . In case of wall mounting, there are 4 brackets alone with the unit. Fix the brackets with thein the back of cover and then, mount it on the wall by means of expansion anchoring bolts.
